Luxor Lamp

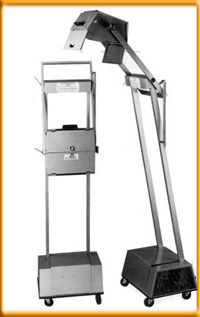

The Hanovia Luxor Alpine Quartz Lamp provides the practitioner with Full Spectrum Ultraviolet, Health, Germicidal, and Therapeutic Rays
PLUS
400 Watts of Infrared Radiation for fast and efficient office and hospital therapy


Features:
5-Second Exposure - produces 1st degree erythema at 30"
Lamp Builds Up Quickly - to full intensity
Built-In - tape measure assures consistent patient positioning in relation to source
Quick Cooling - permits fast relighting
Intense Output - evenly distributed over wide, shadowless area
Fully Adjustable - to every position
Independent Operation - of infrared and ultraviolet generators
Rugged Design - assures years of dependable service


Specifications
Operates on:
110-120 Volts, 60 Cycle AC
220 Volts, 50 Hz AC
Input: 560 Watts; 6 Amperes


Ultraviolet Source:
Self-starting, high-pressure pure quartz mercury arc tube equipped with activated thermionic electrodes. Metal leads sealed directly in quartz. 135 Volts; 450 Watts; 4 Amperes.

Average Output at 30"
with shutters vertical - 5100 Microwatts per sq. cm.
with shutters horizontal - 2900 Microwatts per sq. cm.


Infrared Source:
Two 200-Watt generators enclosed in quartz tubes...operated independently of ultraviolet type. 400 Watts.
